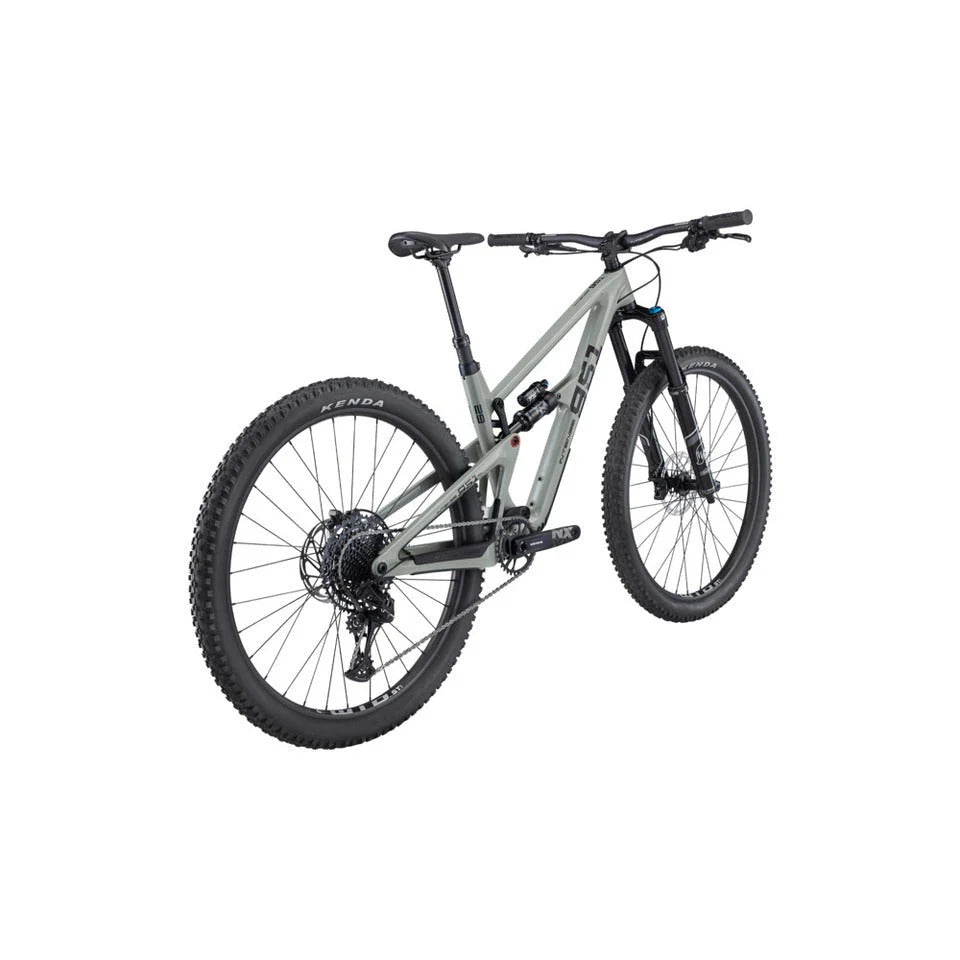

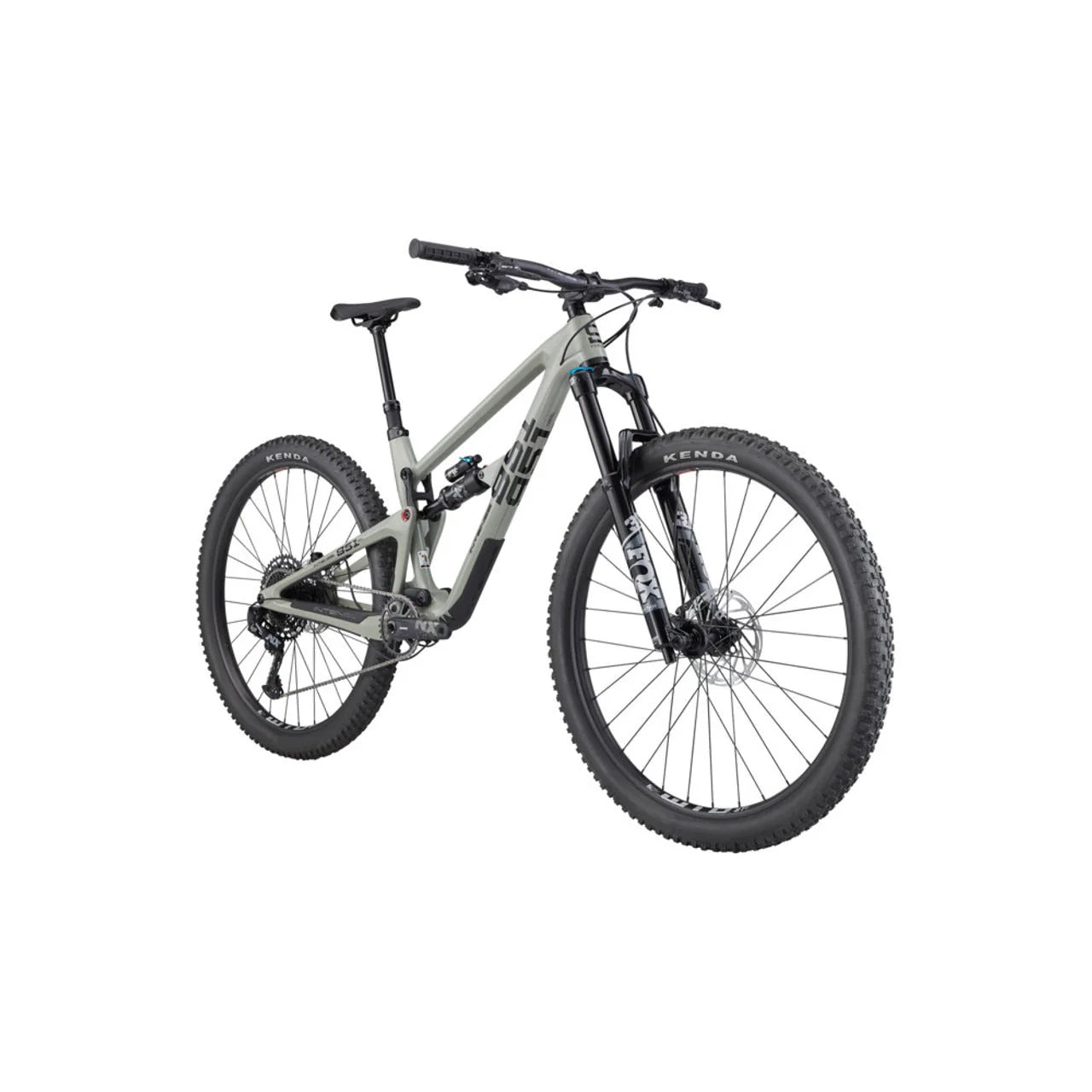

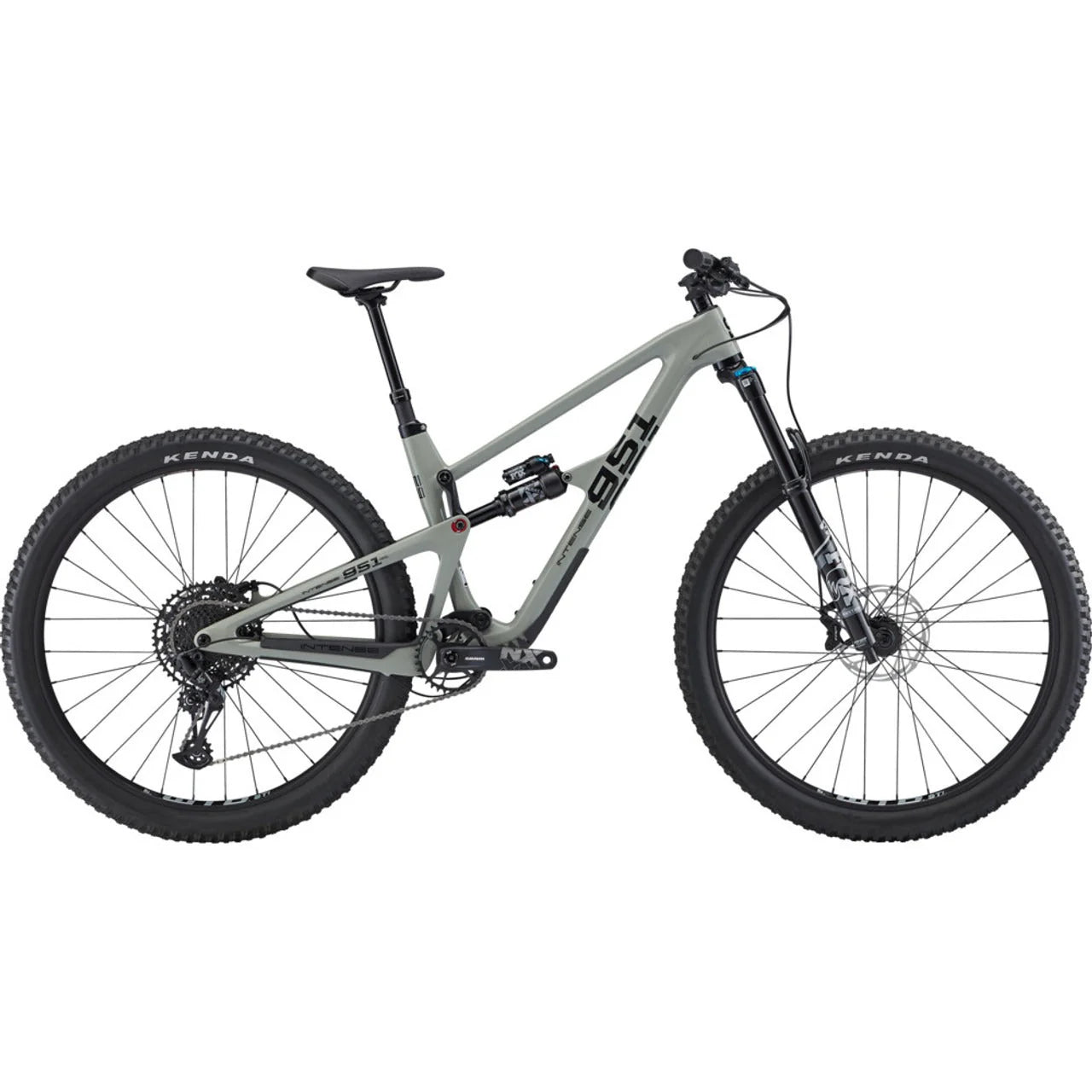

2024 Intense 951 Series Trail Bike

Specifications

Product: Intense 951 Series Trail Bike
Model Year: 2024
Riding Style: Trail
Enduro/All-Mountain
Rider: Unisex
Sizes and Geometry: S (High. Low)

M (High. Low)

L (High. Low)

XL (High. Low)

Wheel Size: 29"
Frame Material: Carbon Fiber
Frame Details: Carbon front and rear triangle; molded chainstays. seatstays. and downtube; protectors
Rear Travel: 140 mm
Shock: FOX FLOAT X Performance. 2-position lever (Open. Trail)
Fork: FOX FLOAT 36 Rhythm. GRIP damper. Sweep Adjust
Fork Travel: 150 mm
Head Tube Diameter: Tapered. 1.125" top. 1.5" bottom
Headset: Intense ZS44-EC49/40
Handlebars: Intense Recon aluminum frame
Width: 760 mm (S). 780 mm (M-XL)
Stem: Intense Recon. 45 mm length
Grips: Intense. lock-on
Brakes: TRP Slate T4. 4-piston. TRP 180 mm rotors
Brake levers: TRP Slate T4. tool-free reach adjustment
Drivetrain: 1x
Shifters: SRAM NX Eagle. 12-speed
Front derailleur: Not included
Rear derailleur: SRAM NX Eagle. 12-speed
ISCG mount: ISCG05
Chain guide: Not included
Cranks: SRAM NX Eagle Alloy DUB
Length: 170 mm (S-L). 175 mm (XL)
Chainrings: SRAM NX Eagle. 32 teeth Teeth
Bottom bracket: SRAM DUB. 73 mm BSA thread
Pedals: Not included
Chain: SRAM NX Eagle 12-speed
Cassette: SRAM NX Eagle PG-1230. 12-speed. 11-50 teeth
Rims: WTB ST i30. aluminum. 30 mm internal width
Hubs: Intense aluminum. 15 mm x 110 mm (Boost) front. 12 mm x 148 mm (Boost) rear with HG freehub body
Spokes: DT Swiss
Tires: Kenda Pinner. 29" x 2.4"
Saddle: fi'zi:k Terra Alpaca X5. aluminum rails
Seatpost: Intense Recon Dropper
Loading range: 125 mm (S). 150 mm (M/L). 175 mm (XL)
Seatpost diameter: 31.6 mm
Seatpost clamp: Semi-integrated. single-bolt
Rear dropout/hub dimensions: 12 mm x 148 mm (Boost)
Max. tire size: 29" x 2.4"
Water bottle cage mounts one inside the front triangle
Color: Gray
Warranty: 5 years on the frame
Weight: 14345 g (31 lb 10 oz)
Other features: • JS Trail Link Virtual Pivot Point rear suspension
• Geometry adjustment via flip chip at the shock mount
• Internal cable routing
